Installing the Device

The setup is designed to be plug and play with your existing Starlink or wireless router.
The Starlink Actuated dish will require you to purchase the Starlink Ethernet Adapter.

The only component that needs configuring is your outdoor access point.

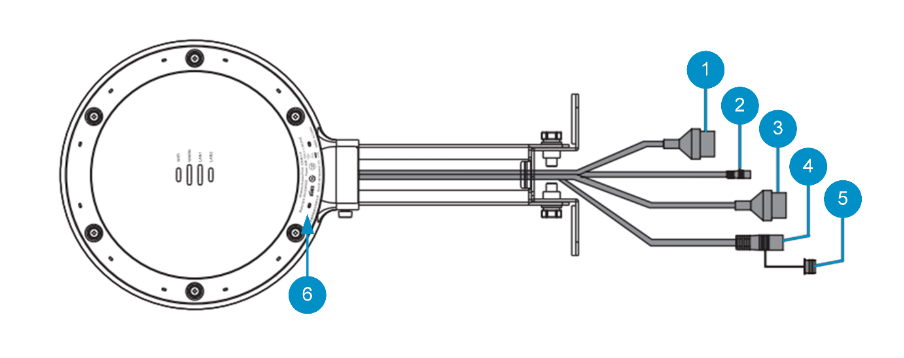

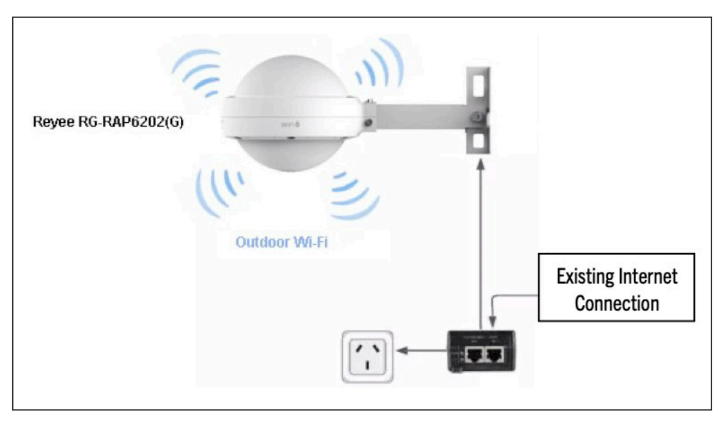

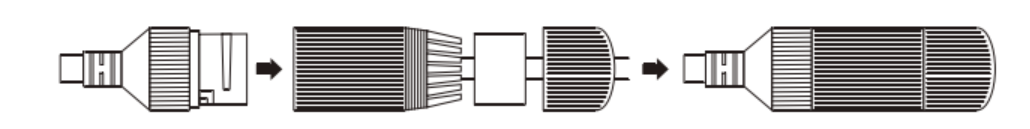

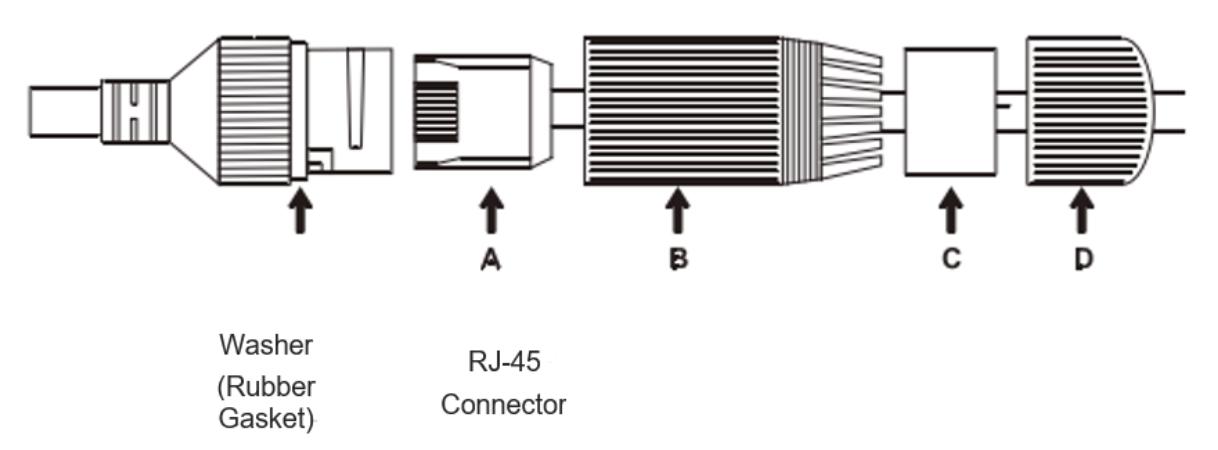

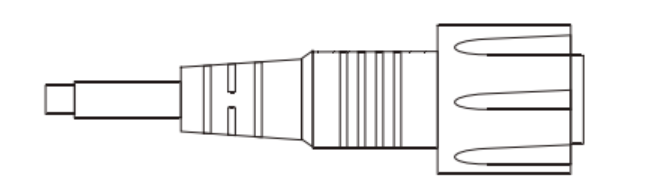

STEP 1 - Connect cables by following the diagram above.
STEP 2 - Mount your outdoor access point.
STEP 3 - Scan QR Code on access point or download and the Ruijie Cloud App from the App or Play Store.
STEP 4 - Run app and follow the directions outlined in the access point's setup guide.
STEP 5 - Setup your SSID and password the same as your existing indoor network for seamless outdoor roaming.



Wall Mounting

(1)  Use the mounting plate and M8 x 60 expansion bolts to implement wall mounting.

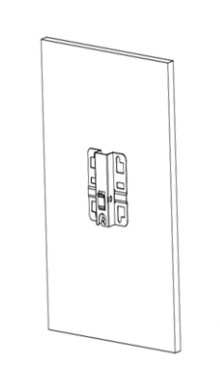

• Attach the mounting plate to the wall and mark the locations of screw holes after adjusting the installation position.

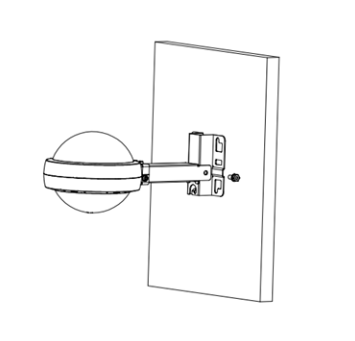

• Install the access point (AP) and the connecting rod to the mounting plate on the wall, and tighten the M8 x 20 screws to complete installation.



Vertical Pole Mounting

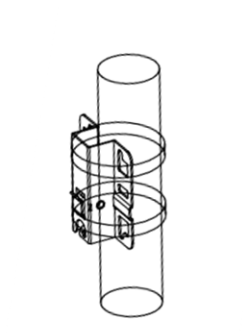

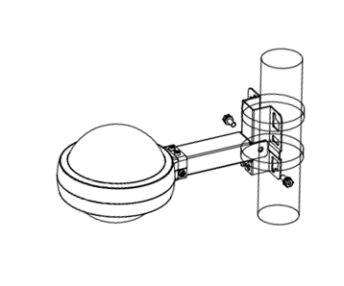

(1)  Secure the mounting plate to the vertical pole by threading two clamps through the mounting plate, and fasten the clamps with screws. You are advised to use an electronic screwdriver.

(2)  Install the access point and the connecting rod to the mounting plate on the vertical pole, and tighten the M8 x 20 screws to complete installation.

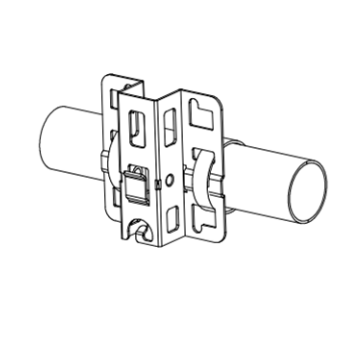

Horizontal Pole Mounting

Please Note: The procedures of horizontal pole mounting are the same as those of vertical pole mounting.

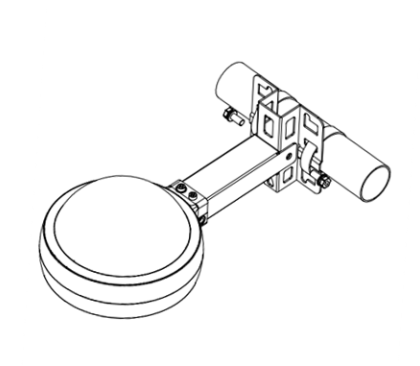

Mounting the Plate on a Horizontal Pole

Horizontal Pole Mounting

Please note:

The access point should not be installed in the place prone to water accumulation, seepage, dripping, and condensation.

You are advised to install the access point horizontally.



Checklist After Installation



(1)  Checking the AP

• Verify that the external power supply matches with the requirement of the AP.
• Verify that the AP is securely fastened.




(2)  Checking Cable Connections

• Verify that cables are properly bundled.



(3)  Checking Power Supply

• Verify that the power cord is properly connected and compliant with safety requirements.
• Verify that the AP works properly when powered by the power supply.



Monitoring and Maintenance

Monitoring

When it is operating, you can monitor its status by observing the LEDs.



Maintenance

If the hardware is faulty, please contact customer support for assistance.





Choosing a Site



The outdoor AP can be mounted on a wall and a pole with a diameter ranging from 50 mm to 70 mm (1.97 in. to 2.76 in.). If the diameter of the pole is out of the range, the hose clamp is customer-supplied. In this case, it is recommended that you use a hose clamp with thickness of 2.5mm (0.1 in.) at least. The installation site varies due to on-the-spot surveys conducted by technical personnel.



Grounding and Lightning Protection

• l  Keep the grounding connection within 30 m (98.43ft), and use a 40 mm x 4 mm (1.57 in. x 0.16 in.) or 50 mm x 5 mm (1.97 in. x 0.2 in.) ground bar of hot-dip zinc-coated flat steel sheet.
• l  When the connection cable between the main grounding conductor and local equipotential earthing terminal board (LEB) on each floor is short, use a stranded copper wire with a sectional area not less than 1.318 mm² (16 AWG) for the connection cable.
• Use a shielded network cable and make sure that the devices at the two ends of the cable, and the shielded sleeves are well grounded. Alternatively, run the network cable through the steel pipe and ground the pipe at both ends.
• No additional lightning protector is required as a high-profile lightning protector is built in the RG-RAP6202(G) and the antenna port and power port support 4 kV lightning protection. If a lightning protector of a higher profile is available, configure the lightning protector optionally. Before the configuration, connect the lightning protector to the ground cable.
• Use a power cable with the PE end to ground the power supply (AC). Ensure that the PE end is properly grounded, with a ground resistance less than 5 ohms. Do not use a two-wire power cable with only the live (L) wire and naught (N) wire. Do not connect the N wire to the protection ground cable of other communication devices, and ensure that the L wire and N wire are properly connected.
• The ground resistance should be less than 5 ohms. In an area with a higher soil resistivity, reduce the soil resistance by spreading ground resistance reducer powder to reduce the soil resistivity.



EMI

All interference sources (from outside or inside of the device or application system) affect the device by capacitive coupling, inductive coupling, or electromagnetic waves.

Electromagnetic interference (EMI) occurs due to electromagnetic radiation or conduction, depending on the transmission path.

Radiation interference occurs when energy (usually radio frequency energy) is emitted from a device and propagated through space to disrupt other devices. The interference source can be part of disrupted system or a fully electrically isolated unit. Conduction interference occurs when interference is transferred from one unit to another through cables, which are usually electromagnetic wires or signal cables connected between the source and the device(s) experiencing interference. Conduction interference often affects the power supply of the device. It is eliminated by using filters. Radiation interference can influence the path of any signal from the device and is difficult to shield.

• Take effective measures against interference from the power grid.
• Keep the AP far away from the grounding or lightning protection devices for power equipment.
• Keep the AP away from high-power radio stations, radar stations, and high-frequency high-current devices.
• Take electrostatic shielding measures.
